BELL 505

Τhe Bell 505 Jet Ranger X is an American/Canadian light helicopter developed and manufactured by Bell Helicopter. The Bell 505 was unveiled at the 2013 Paris Airshow in June 2013 as the Bell SLS. The Bell 505 designation was officially announced in February 2014.
The Bell 505 Jet Ranger X is Bell’s new five-seat aircraft designed for safety, efficiency and
reliability through advanced avionics technology. BELL 505 We are pleased to inform you that the Bell 505 is a brand-new helicopter model 2022

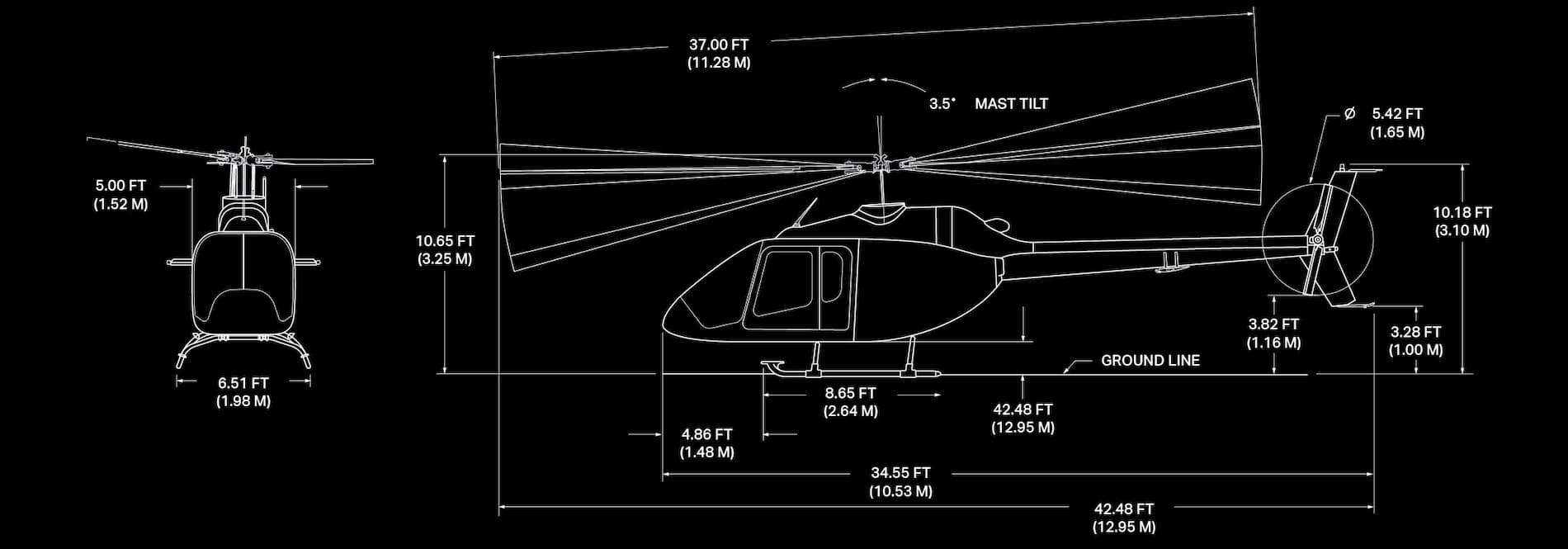

SPECIFICATIONS

General information

12.95 m/42.48 FT
LENGTH
1.98m / 6.51 FT
Width
3.10 m/10.18 FT
Height
1+4
PASSENGERS
125 kts | 231 km/h
Max Speed
459 shp / 342 kW
Max Continuous

KEY SPECIFICATIONS OF BELL 505

  • Admired Versatility

Whether moving people or cargo, the 505 is the newest force in the market. An open cabin with integrated tie downs, movable seats and ability to adapt to a variety of jobs keep this aircraft in high demand.

  • True Business-class Comfort

Exceed your expectations with a large, customizable cabin and fully integrated high-tech features. It's got the style you need—with the speed to match.

  • Travel To New Heights

Skip the airport and head straight for adventure. The Bell 505 Jet Ranger X is ready to take you not just where you need to go, but where you want to go.



Hover Ceiling IGE 14,450 ft / 4,404 m
Baggage Compartment 18 ft3 / 0.5 m3
Max Gross Weight (external)  4,475 lbs / 2,030 kg
Maximum Seating 1 + 4
Range at VLRC* 306 nm | 566 km
Takeoff 505 shp / 377 kW
